UB-50 UBIU

THIS EQUIPMENT IS FOR SALE.  ASKING PRICE IS $250,000.  FOR MORE INFORMATION CALL 508-238-1941.

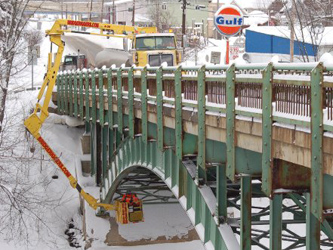

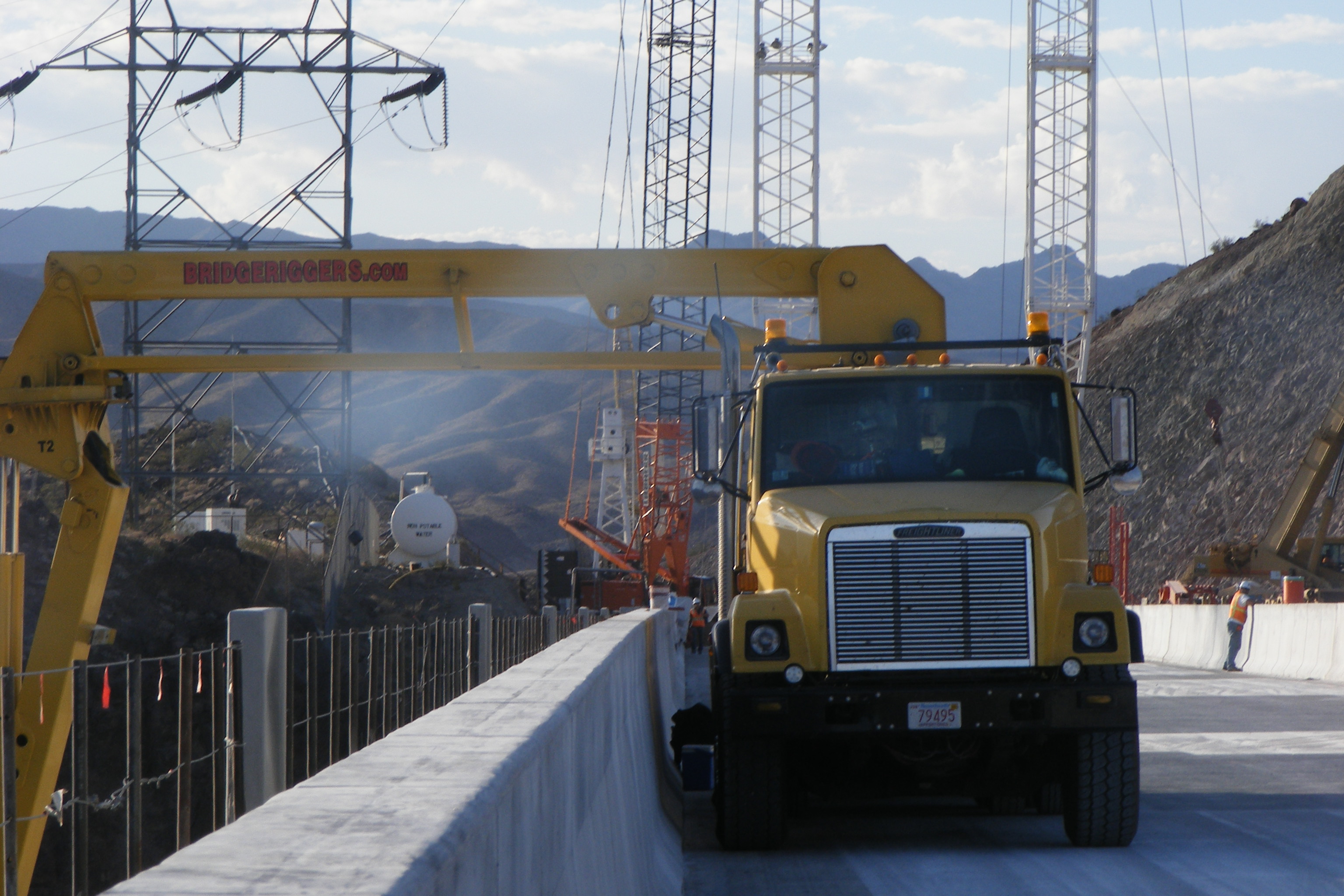

Our UB-50 is a medium sized under bridge machine with a 51’9” maximum horizontal reach. This machine enables you to work above, below, or alongside the bridge span.
N.E. Bridge Contractors, Inc.Under Bridge Inspection Crane



Specifications:
  • Horizontal Under Bridge Reach: 51’9”
  • Vertical Reach Down: 63’
  • Optional 4thTelescoping boom: 14’
  • Overhead Vertical Reach Up: 38’
  • Fence Clearance: 10’
  • Sidewalk Clearance: 12’6”
  • Rotation Range of Turret 1: 270 degrees
  • Rotation Range of Turret 2: 180 degrees
  • Deploys on One Side
  • Registered Weight: 66,000 lbs (33 Tons)
  • Front axle to Rear axle spacing: 28’9”
  • Total Length: 38’
  • Total Height: 13’3”
Features:
  • 600 lbs Bucket Capacity
  • Heated Bucket Platform
  • Inspection Lights
  • Axle Locks
  • No Outriggers or External Stabilizers
  • Basket Size (Two Person Basket): 40” x 60” x 42”
  • Three sets of controls: one set in the platform, one remote set, one set at the
    pedestal.
  • Sloped indicator alarm
N.E. Bridge Contractors, Inc.

Internal Counter-weight sytem in Use. No Outriggers Required.

For Questions or a Price Quote,
Please Contact Us
or Call 508-238-1941
