Hi-Rail Platform Lift

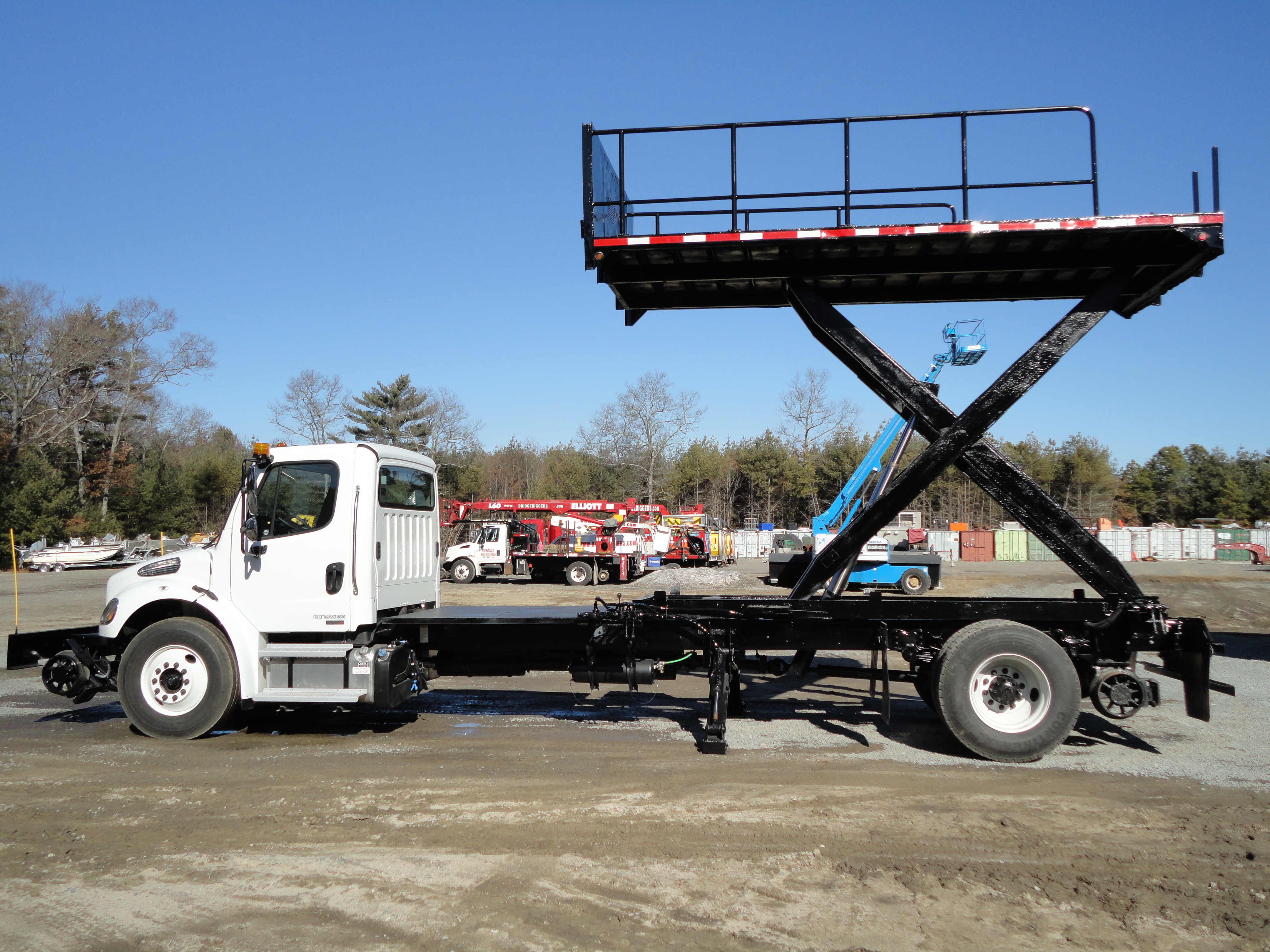

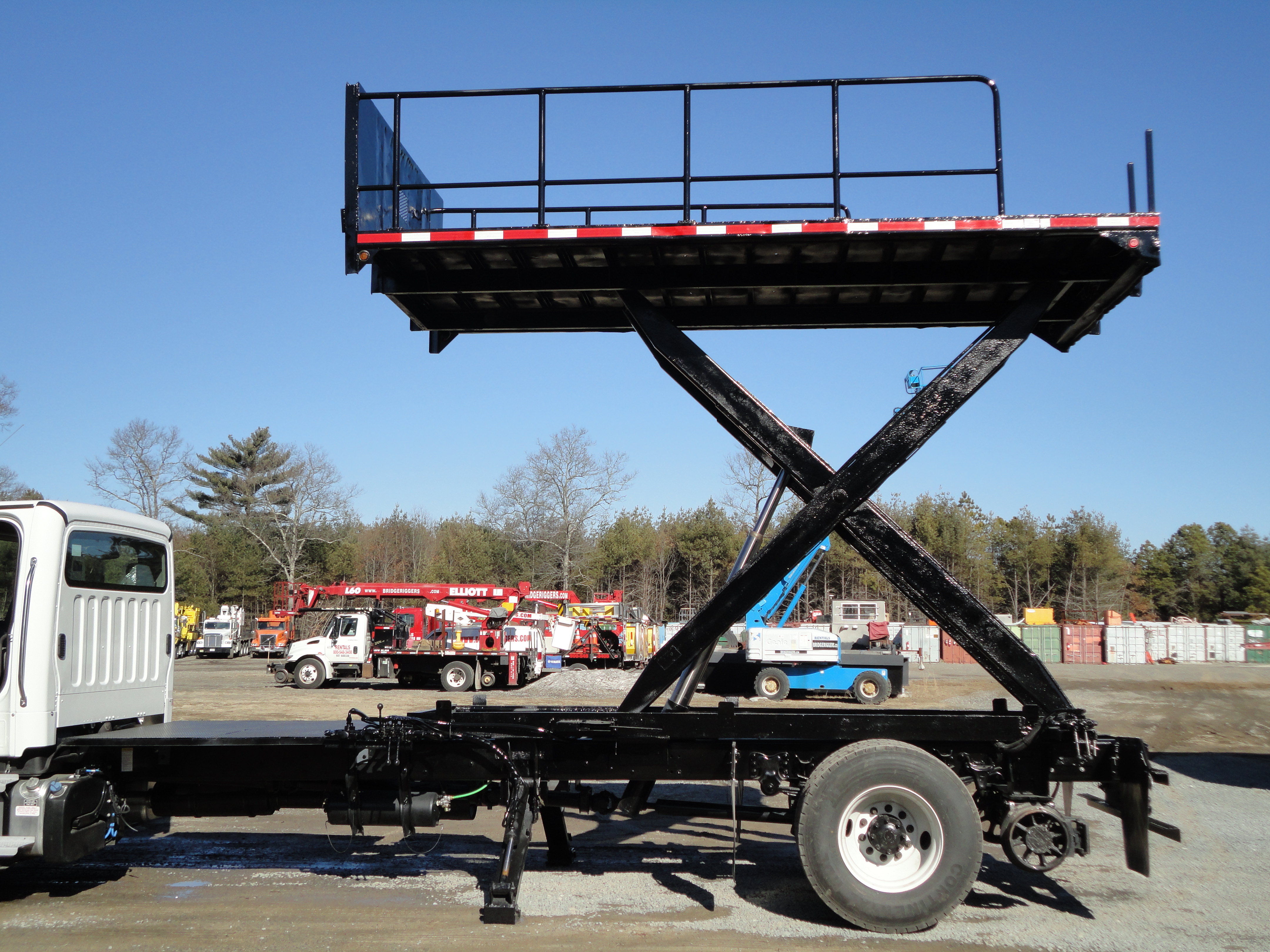

Our Truck-Mounted Hi-Rail Platform Lift is available for bare rental or with a railroad certified  driver.  The 14 foot Hydraulic Scissor Lift is mounted onto a 2012 Freightliner M2106.  There is a 6′x6′ storage/work area behind the cab for equipment such as a generator or air compressor.  This equipment is road and rail capable.

Total Vehicle Weight: 19,500 lbs

Total Truck Length: 23′

Total Truck Width: 8′

Height of Stowed Truck: 8’6″

Storage/Work Platform Behind Cab: 6′x6′

Total Platform Size: 16′ L x 8′ W

Railing Height: 3′

Height from Ground to Deck: 14′

Weight Capacity: 6,000 lbs.
