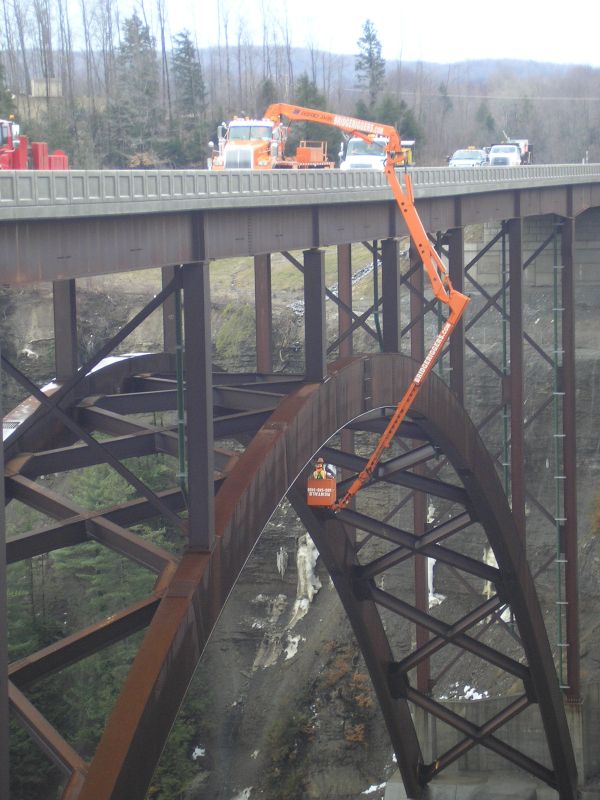

Our A-62 is one of our larger under bridge machines with a 61’9” maximum horizontal reach. The A-62 provides 13′ of vertical reach through the use of its 13′ telescopic 4th boom section. This feature will enable you to perform a close-up inspection in between your deepest girders, gutters, and beams under the bridge deck. Whether you need to work above, below, or alongside the bridge, the A-62 will safely maneuver you closer to the bridge structure and allow you to work hands on, getting work done more efficiently and more effectively .
Specifications:
- Horizontal Under Bridge Reach: 61’9”
- Vertical Reach Down: 67’7”
- 4th Telescoping boom: 13’
- Overhead Vertical Reach Up: 51’6”
- Fence Clearance: 11’
- Sidewalk Clearance: 13’
- Rotation Range of Turret 1: 270 degrees
- Rotation Range of Turret 2: 180 degrees
- Front axle to Rear axle spacing: 19’8”
- Deploys on Both Sides
- Registered Weight: 72,000 lbs (36 Tons)
- Front axle to Rear axle spacing: 24’9”
- Total Length: 40’5”
- Total Height: 13’
Features:
- 600 lbs Bucket Capacity
- Heated Bucket Platform
- Inspection Lights
- Axle Locks
- No Outriggers or External Stabilizers
- Basket Size (Two Person Basket): 40” x 60” x 42”
- Three sets of controls: one set in the platform, one remote set, one set at the pedestal.
- Sloped indicator alarm
To see a detailed flight path of the A-62, please click here.
