A-30 Hi-Rail Under Bridge Units

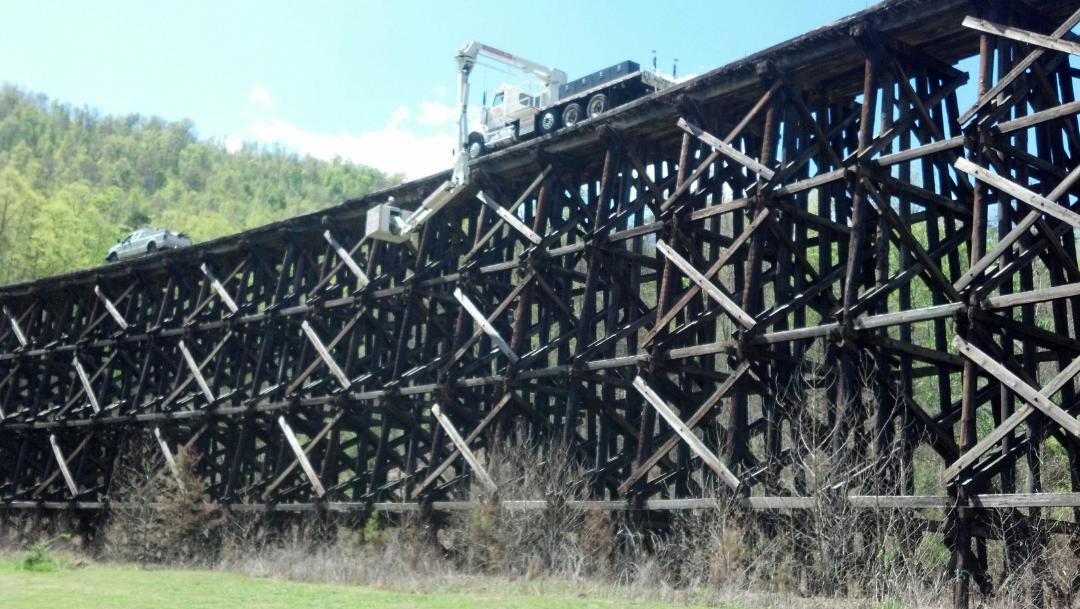

Our 30′ Hi-Rail Under Bridge Units are ideal for accessing, inspecting and repairing railroad bridges.

Road to Rail capable equipment creates quick and easy access to any location with railroad tracks from an at-grade crossing. The front guide wheel assembly attaches to the frame and front axle and lifts the front wheels off the track, thus utilizing the vehicle’s front suspension. This design supports the vehicle as it was intended and helps the truck navigate curves smoothly and damp out the effects of track irregularities. The rear assembly attaches directly to the truck frame behind the rear axle.

Click Here for Hi-Rail A-30 Flight Path

Features:

  • Rail Mounted Unit
  • 600 lbs Bucket Capacity
  • Heated Bucket
  • Inspection Lights
  • Axle Locks
  • No Outriggers

Specifications:

  • Horizontal Under Bridge Reach: 30′ 11″
  • Vertical Reach Down: 40′
  • Vertical Reach Up: 30′ 3″
  • Fence Clearance: 10′ 3″
  • Rotation Range of Turret 1: 270 Degrees
  • Rotation Range of Turret 2: 180 Degrees



Contact Us at 508-238-1941
