A-62 Under Bridge Unit

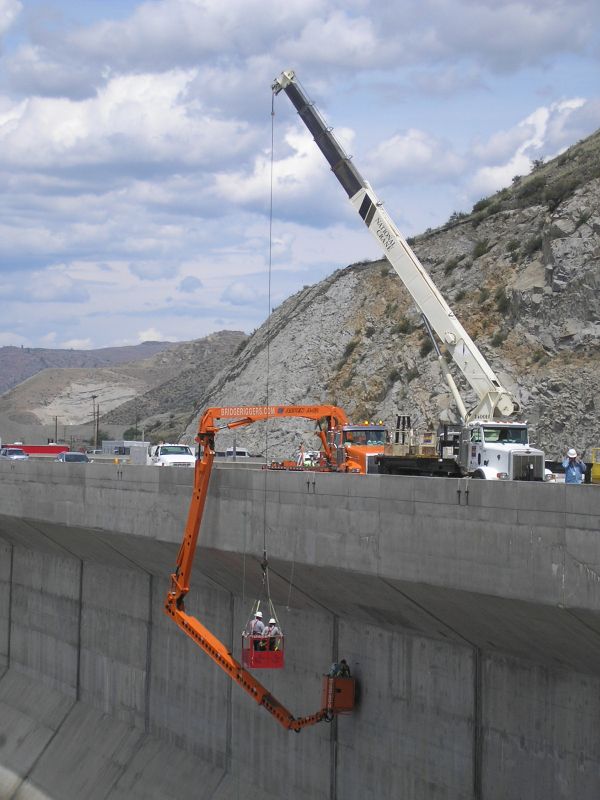

Our A-62 is one of our larger under bridge machines with a 61’9” maximum horizontal reach. The A-62 provides 13′ of vertical reach through the use of its 13′ telescopic 4th boom section.  This feature will enable you to perform a close-up inspection in between your deepest girders, gutters, and beams under the bridge deck. Whether you need to work above, below, or alongside the bridge, the A-62 will safely maneuver you closer to the bridge structure and allow you to work hands on, getting work done more efficiently and more effectively .


  • Horizontal Under Bridge Reach: 61’9”
  • Vertical Reach Down: 67’7”
  • 4th Telescoping boom: 13’
  • Overhead Vertical Reach Up: 51’6”
  • Fence Clearance: 11’
  • Sidewalk Clearance: 13’
  • Rotation Range of Turret 1: 270 degrees
  • Rotation Range of Turret 2: 180 degrees
  • Front axle to Rear axle spacing: 19’8”
  • Deploys on Both Sides
  • Registered Weight: 72,000 lbs (36 Tons)
  • Front axle to Rear axle spacing: 24’9”
  • Total Length: 40’5”
  • Total Height: 13’


  • 600 lbs Bucket Capacity
  • Heated Bucket Platform
  • Inspection Lights
  • Axle Locks
  • No Outriggers or External Stabilizers
  • Basket Size (Two Person Basket): 40” x 60” x 42”
  • Three sets of controls: one set in the platform, one remote set, one set at the pedestal.
  • Sloped indicator alarm

To see a detailed flight path of the A-62, please click here.
